FPS technology, made by PACT

PACT Lion-X: a water-based foam for lithium-ion battery fires

Lion-X is the world's first specialized, water-based fire extinguishing foam for lithium-ion battery fires, including those in electric vehicles, e-bikes, e-scooters, laptops and phones. Fireproof Solutions invented and patented the technology, and PACT puts it into a commercial product. It is an extinguishing agent, not packaging.

Manufactured and sold by PACT, Packaging and Crating Technologies.

Visit PACT Lion-X Explore TMS Packaging

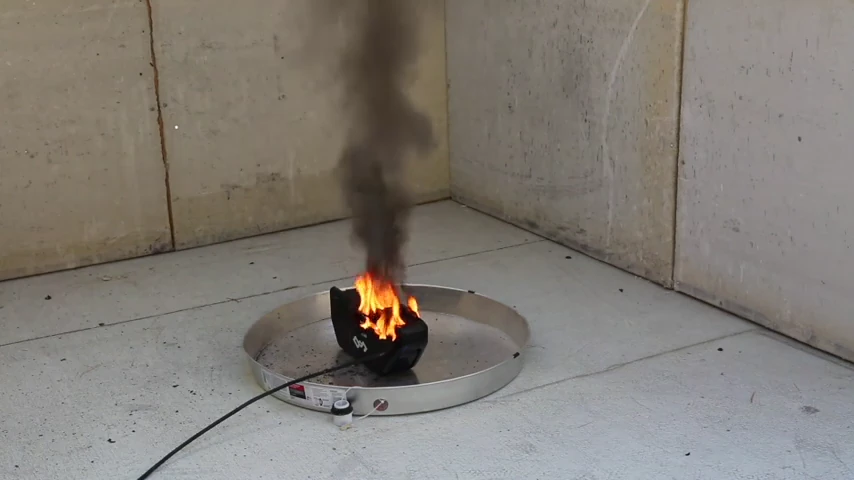

A battery pack burning in a steel pan during the Lion-X test recording. — Test recording, 5 minutes 20 seconds.

What it is

How Lion-X works

Lion-X is a water-based foam that turns white on contact and leaves a fine powder residue that is easy to wash off. The foam sticks to three-dimensional shapes and to overhead and vertical surfaces, and it penetrates small crevices.

It cools the surrounding cells to stop the domino effect of thermal runaway propagation and to prevent reignition. Its wetting agent penetrates the cracks and holes that form during thermal runaway. Lion-X also works on ordinary combustibles such as fabric, wood and cooking oil.

Read PACT's Lion-X page

Test recording

Lion-X in testing

A battery pack in a steel pan, a thermal runaway event, and extinguishing with a handheld Lion-X unit.

Visit PACT Lion-X

Test recording, 5 minutes 20 seconds.

Performance

What our testing shows

Results from Fireproof Solutions testing of Lion-X.

Speed: Quenches lithium-ion fires upwards of 1,600°F within 30 seconds.
Capacity: The only extinguisher in its class proven to effectively put out lithium-ion battery fires up to 600Wh, in a 6L format.
Safety: Can be used without personal protective equipment (PPE).
Formulation: Biodegradable, fluorine-free, and free of heavy metals. Safe to flush into sewers.
Smoke: Produces virtually no hydrogen or methane smoke.
Temperature: Usable in temperatures down to 30 degrees below zero Fahrenheit.
Formats: Works in portable, wheeled, manual or automatic extinguishers, and can be piped into EV battery packs and energy storage modules.

With FPS

Extinguishing agent, not packaging

Lion-X puts out a lithium-ion battery fire. TMS packaging is a separate Fireproof Solutions product: treated corrugated cartons designed to contain a battery fire and manage heat within the package.

Explore TMS Packaging PACT Thermo Shield

Compare

Three products, three jobs

Fireproof Solutions invented and patented the technology behind these products. PACT manufactures and sells them. TMS packaging is a separate Fireproof Solutions product.

Descriptions from Fireproof Solutions testing and PACT product information.
Product	Type	Primary function	Key features
Lion-X	Liquid / foam agent	Active fire suppression for active lithium-ion fires and chargers	Water-based, fluorine-free and biodegradable. Quenches fires in about 30 seconds and suppresses toxic gases.
Thermo Shield	Paper-based wrap	Passive protection during transit, storage, and end-of-life handling	100% recyclable. Suppresses thermal runaway at temperatures up to 800°C and limits oxygen and toxic fumes.
TR Sleeve	Cell-level barrier	E-mobility battery cell separation	Wraps individual cells to block heat and flame propagation between adjacent battery cells.

Source and scope

Fireproof Solutions invented and patented the technology behind these products, and PACT manufactures and sells them. Review the test information and safety data sheets before relying on product performance for your application.

Learn more from PACT

PACT's Lion-X site has product information, a brochure and a contact form.

Visit PACT Lion-X
